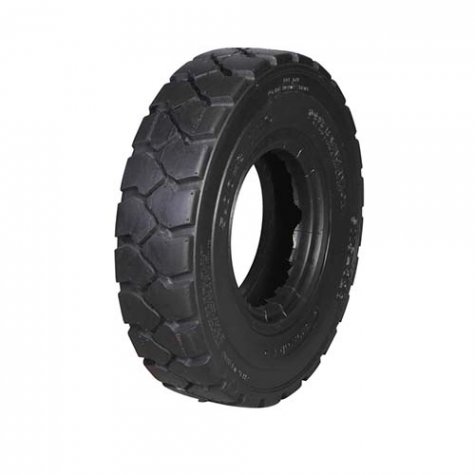

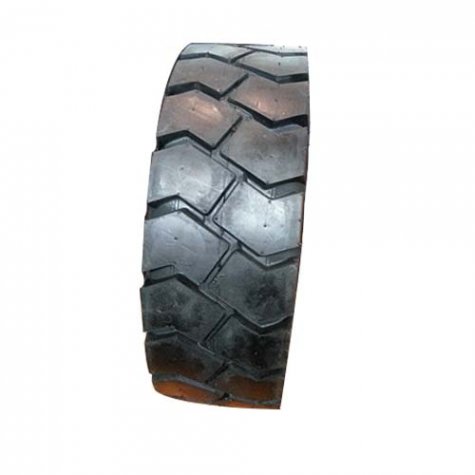

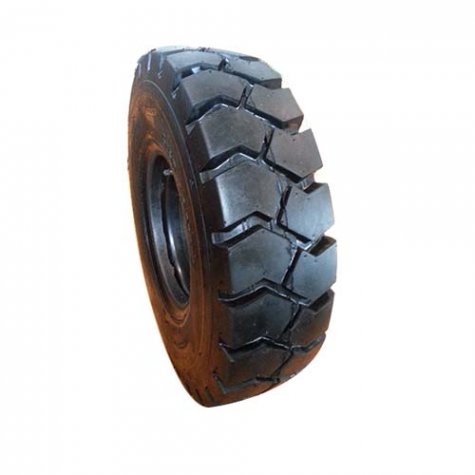

| Forklift Pneumatic Tire | ||||||||||||||
Size
| P.R | Overall Diameter (mm) | Section Width (mm) | Tread Depth (mm) | RiM | Inflated Pressure (Kpa) | Load Capacity (kgs) | |||||||
| Drive Wheel | Steer Wheel | Industrial Vehicles | ||||||||||||
| 16km/h | 24km/h | 24km/h | 32km/h | 8km/h | 16km/h | 24km/h | 32km/h | |||||||
| 5.00-8 | 10 | 468 | 144 | 12 | 3.50D | 1000 | 1290 | 1100 | 955 | 850 | 955 | 760 | 705 | 655 |
| 6.00-9 | 10 | 540 | 166 | 13 | 4.00E | 860 | 1680 | 1515 | 1280 | 1125 | 1280 | 1010 | 945 | 875 |
| 6.50-10 | 10 | 590 | 186 | 15 | 5.00F | 790 | 1915 | 1725 | 1455 | 1280 | 1455 | 1150 | 1075 | 1000 |
| 7.00-12 | 14 | 676 | 197 | 19 | 5.00S | 1000 | 2965 | 2670 | 2255 | 1980 | 2255 | 1780 | 1660 | 1540 |
| 7.00-12 | 12 | 762 | 203 | 19 | 5.50F | 860 | 3150 | 2835 | 2395 | 2100 | 2395 | 1890 | 1760 | 1635 |
| 7.00-15 | 14 | 762 | 203 | 19 | 5.50F | 1000 | 3400 | 3060 | 2595 | 2270 | 2595 | 2040 | 1910 | 1785 |
| 7.50-15 | 14 | 802 | 215 | 19 | 6.00G | 925 | 3640 | 3290 | 2800 | 2480 | 2800 | 2245 | 2105 | 1965 |
| 8.25-15 | 14 | 830 | 250 | 20 | 6.5 | 830 | 4255 | 3830 | 3235 | 2845 | 3235 | 2555 | 2385 | 2215 |
| 18×7-8 | 16 | 465 | 173 | 14 | 4.33R | 1000 | 2130 | 1960 | 1640 | 1490 | 1640 | 1355 | 1285 | 1205 |
| 21×8-9 | 14 | 533 | 203 | 15 | 6.00E | 1000 | 2350 | 2115 | 1785 | 1570 | 1785 | 1405 | 1315 | 1220 |
| 23×9-10 | 18 | 584 | 225 | 13 | 6.50F | 1080 | 3240 | 2900 | 2485 | 2285 | 2485 | 1965 | 1875 | 1710 |
| 23×10-12 | 12 | 597 | 255 | 14 | 8 | 830 | 3290 | 2950 | 2495 | 2185 | 2495 | 1970 | 1835 | 1705 |
| 27×10-12 | 14 | 690 | 255 | 16 | 8.00G | 830 | 3400 | 3035 | 2650 | 2350 | 2650 | 2140 | 1980 | 1800 |
| 28×9-15 | 14 | 706 | 231 | 20 | 7 | 970 | 3415 | 3075 | 2595 | 2280 | 2595 | 2050 | 1910 | 1775 |
| 250-15 | 18 | 735 | 250 | 20 | 7.5 | 1030 | 4580 | 4105 | 3470 | 3040 | 3470 | 2745 | 2560 | 2375 |
| 300-15 | 20 | 840 | 300 | 21 | 8 | 930 | 6575 | 5940 | 4990 | 4400 | 4990 | 3945 | 3675 | 3425 |
| 9.00-20 | 14 | 1034 | 259 | 20 | 7 | 760 | 5880 | 5285 | 4465 | 4105 | 4465 | 3520 | 3290 | 3065 |
| 10.00-20 | 18 | 1070 | 278 | 22 | 7.5 | 900 | 7300 | 6560 | 5545 | 4875 | 5545 | 4270 | 4090 | 3800 |
| 12.00-20 | 28 | 1145 | 315 | 25 | 8.5 | 1300 | 10355 | 9460 | 8345 | 7630 | 8345 | 7105 | 6795 | 6585 |
