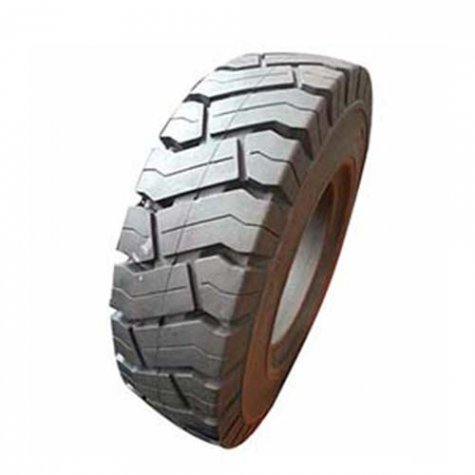

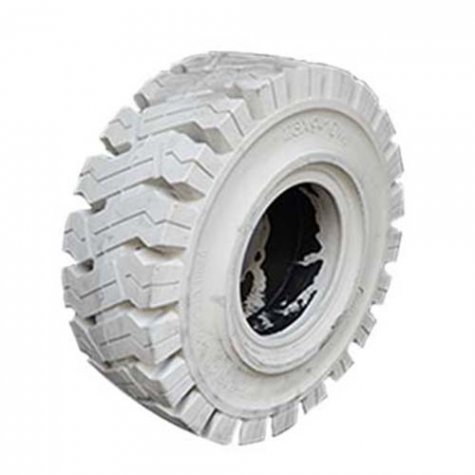

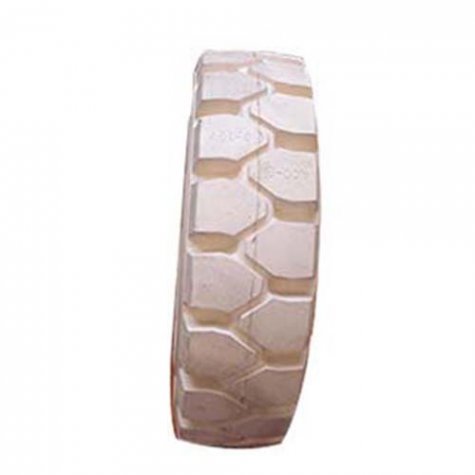

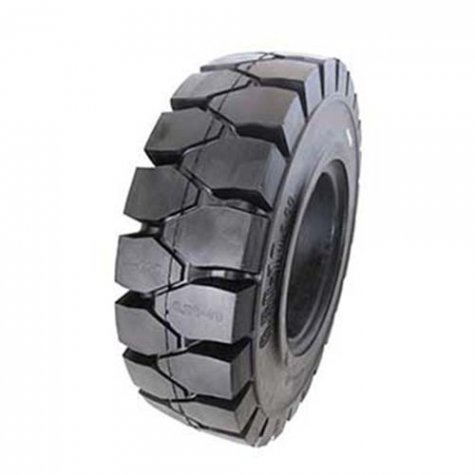

Forklift Solid Tyre

With good wear resistance, heat resistance, cutting resistance and excellent traction performance, life-long maintenance free, suitable for forklifts and special vehicles, factories, mines and other widely used tires.

Inquire Now

Technical Parameter

Forklift Solid Tire
Size	RIM	OD.(Mm)	Width(mm)	MAX.LOAD(kg)							PATTERN
				Counterbalanced Lift Truck						Other Industrial 16km/h
				10km/h		16km/h		25km/h
				Driving wheel	Steering wheel	Driving wheel	Steering wheel	Driving wheel	Steering wheel
4.00-8	3.00	423	115	1055	845	1020	765	950	715	730	HY-101
4.00-8	3.75	423	115	1055	845	1020	765	950	715	730	HY-101
5.00-8	3.00	469	126	1210	970	1175	880	1095	820	840	HY-101
6.00-9	4.00	545	140	1920	1535	1855	1390	1730	1295	1325	HY-101
6.50-10	5.00	597	157	2640	2110	2545	1910	2370	1780	1820	HY-101
7.00-9	5.00	578	170	2730	2015	2605	1925	2530	1790	1940	HY-101
7.00-12	5.00	683	168	3015	2410	2910	2185	2710	2035	2075	HY-101
7.00-15	5.50	759	178	3590	2870	3465	2600	3225	2420	2475	HY-101
7.00-15	6.00	759	178	3590	2870	3465	2600	3225	2420	2475	HY-101
7.50-15	5.50	774	215	3690	2950	3425	2570	3190	2395	2450	HY-101
7.50-15	6.00	774	215	3690	2950	3425	2570	3190	2395	2450	HY-101
7.50-15	6.50	774	215	3690	2950	3425	2570	3190	2395	2450	HY-101
7.50-16	5.50	819	181	3910	3130	3780	2835	3520	2640	2700	HY-101
7.50-16	6.00	819	181	3910	3130	3780	2835	3520	2640	2700	HY-101
8.25-15	6.50	847	205	4940	3950	4765	3575	4440	3330	3405	HY-101
8.25-12	6.50	735	206	3325	2660	3215	2410	2995	2245	2295	HY-101
28x9-15 (8.15-15)	7.00	706	207	4090	3270	3945	2960	3675	2755	2820	HY-101
8.25-20	6.50	992	218	5425	4340	5420	3930	4880	3735	3475	HY-101
7.50-20	6.50	935	218	5165	4130	4985	3740	4640	3480	3560	HY-101
9.00-16	6.50	884	218	5135	4110	4695	3725	4625	3470	3550	HY-101
9.00-20	6.50	1038	238	5990	4790	5780	4335	5380	4035	4130	HY-101
9.00-20	7.00	1038	238	6450	5160	6235	4675	5805	4355	4450	HY-101
10.00-20	7.50	1073	240	7480	5990	7230	5420	6730	5045	5160	HY-101
10.00-20	8.00	1073	240	7725	6180	7460	5595	6945	5210	5330	HY-101
11.00-20	7.50	1075	252	8440	6750	8160	6110	7610	5680	5840	HY-101
11.00-20	8.00	1075	252	8740	7050	8460	6410	7910	5980	5090	HY-101
12.00-20	8.00	1146	290	8800	7000	8500	6925	8000	6450	6595	HY-101
12.00-20	8.50	1146	290	9100	7300	8800	7225	8300	6750	6845	HY-101
1200-24	8.50	1247	309	9575	7655	9235	6925	8600	6450	6590	HY-101
14.00-20	10.00	1260	332	10800	8640	10430	7840	9730	7315	7450	HY-101
1400-24	10.00	1368	335	11865	9490	11390	8545	10680	8010	8185	HY-101
15×41/2-8	3.25	380	106	985	790	955	715	890	670	680	HY-101
15×41/2-8	3.00	380	106	930	750	910	680	850	640	650	HY-101
16×6-8	4.33	418	156	1500	1200	1445	1085	1345	1010	1035	HY-101
18×7-8	4.33	457	165	2350	1880	2265	1700	2110	1585	1620	HY-101
21×8-9	6.00	535	189	2810	2250	2715	2035	2530	1895	1940	HY-101
23×9-10	6.50	597	230	3420	2735	3300	2475	3076	2305	2355	HY-101
23x10-12	8.00	595	236	3980	3420	3820	3210	3586	3010	2980	HY-101
27×10-12	8.00	683	236	4465	3570	4315	3235	4020	3015	3080	HY-101
28×12.5-15	9.75	706	300	5735	4590	5540	4165	5170	3890	3955	HY-101
32×12.1-15	9.75	823	301	7120	5700	6880	5170	6410	4820	4910	HY-101
200/50-10	6.50	458	198	2470	1850	2240	1680	1900	1425	2050	HY-101
300-15	8.00	838	259	5990	4790	5780	4335	5380	4035	4130	HY-101
250-15	7.00	735	226	4675	3470	4515	3385	4250	3155	3225	HY-101
250-15	7.50	735	226	4675	3470	4515	3385	4250	3155	3225	HY-101
