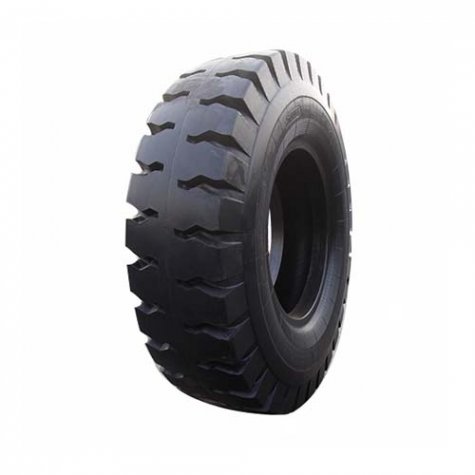

Suitable for the scraper and heavy dump trucks operation on harsh road condition such as mining areas, tunnel, quarry and construction site etc, deep tread and wide riding area provide good cutting & wear resistance, improve ride properties on gravel road, the tires have long service lift and is durable.
| Size | P.R. | Overall Diameter (mm) | Section Width (mm) | Rim | Max Load (kgs) | Inflation Pressure (Kpa) | Tread Depth (mm) | ||
| 10 km/h | 50 km/h | 10 km/h | 50 km/h | ||||||
| 18.00-25 | 36 | 1615 | 495 | 13.00/2.5 | 16000 | 9250 | 850 | 625 | 54 |
| 1800-33 | 36 | 1820 | 495 | 13.00/2.5 | 18500 | 10600 | 850 | 625 | 54 |
| 21.00-25 | 36 | 1953 | 575 | 15.00/3.0 | 19000 | / | 725 | / | 57 |
| 2100-33 | 36 | 1953 | 575 | 15.00/3.0 | 23000 | / | 750 | / | 54 |
| 21.00-35 | 36 | 2050 | 570 | 15.00/3.0 | 23000 | 12850 | 750 | 550 | 54 |
| 24.00-35 | 42 | 2175 | 655 | 17.00/3.5 | 29000 | 16500 | 750 | 550 | 57 |
| 2700-49 | 48 | 2700 | 735 | 19.50/4.0 | 43750 | 25000 | 775 | 575 | 63.5 |
| 30.00-51 | 52 | 2905 | 825 | 22.00/4.5 | 53000 | 30000 | 750 | 550 | 69.5 |
| 33.00-51 | 58 | 3060 | 895 | 24.00/5.0 | 61500 | 35500 | 750 | 575 | 80 |
| 36.00-51 | 58 | 3235 | 990 | 26.00/5.0 | 71000 | 41200 | 675 | 525 | 82 |
| 3700-57 | 68 | 3440 | 1015 | 27.00/6.0 | / | 46250 | / | 525 | 60 |
| 4000-57 | 68 | 3595 | 1095 | 29.00/6.0 | 92500 | 54500 | 725 | 550 | 95 |
| 53/80-63 | 78 | 3780 | 1345 | 36.00/5.0 | 123500 | 83500 | 750 | 625 | 95 |
