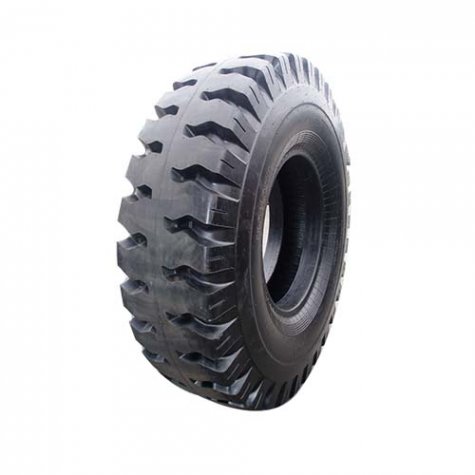

It's suitable for the terminal port crane and heavy crane serise( for track, empty container tranfer, reach stack) is generally used for front and rear wheels & fork track, the tire has a good seal performance, strong driving grasping, strong carcass, not void, not bulging, good wear resistance, good performance of resistance to penetration and also stable running, special design has strengthened tire circle because the rear wheel of fork track was frequently used, so our tires are the best shoose of port machinery.
| Size | P.R. | Overall Diameter (mm) | Section Width (mm) | Rim | Max Load (kgs) | Inflation Pressure (Kpa) | Tread Depth (mm) | ||
| 0 km/h | 5 km/h | 10 km/h | |||||||
| 26.5-25 | 46 | 1760 | 675 | 22.00/3.0 | / | / | 26000 | 800 | 50 |
| 24.00-29 | 42 | 1975 | 650 | 17.00/3.5 | 48900 | 35300 | 32600 | 900 | 36 |
| 21.00-25 | 48 | 1750 | 575 | 15.00/3.0 | 40000 | 34000 | 30000 | 1100 | 52 |
| 18.00-25 | 48 | 1650 | 495 | 13.00/2.5 | 34800 | 30000 | 27600 | 1100 | 54 |
| 18.00-25 | 48 | 1650 | 495 | 13.00/2.5 | 34800 | 30000 | 27600 | 1100 | 59 |
| 16.00-25 | 40 | 1490 | 430 | 11.25/2.0 | 26400 | 21300 | 19800 | 1075 | 52 |
| 14.00-24 | 36 | 1370 | 375 | 10.00 | 21600 | 17400 | 16200 | 1100 | 46 |
| 12.00-24 | 28 | 1245 | 315 | 8.50 | 14000 | 12000 | 9900 | 950 | 46 |
